Physical Topology in Computer Network

In the realm of computer networking, physical topology refers to the tangible layout of interconnected devices and cables within a network. Understanding various physical topologies is crucial for designing efficient, scalable, and fault-tolerant networks.

What is Physical Topology?

Physical topology describes the actual arrangement of network devices and the physical connections between them. It focuses on the placement of nodes (such as computers, switches, and routers) and the cabling infrastructure that links them. This layout impacts network performance, scalability, maintenance, and fault tolerance.twingate.com

Common Types of Physical Topologies

• Physical Topology – Actual physical connections between devices (wires, cables, layout).
• Logical Topology – The path data follows within the network (can differ from physical).

Physical Topology

Physical topology refers to the actual physical layout of devices (like computers, switches, routers) and cables in a computer network.

• It is about how devices are placed and connected via cables or wireless links.
• It doesn’t describe data flow — that’s handled by logical topology.

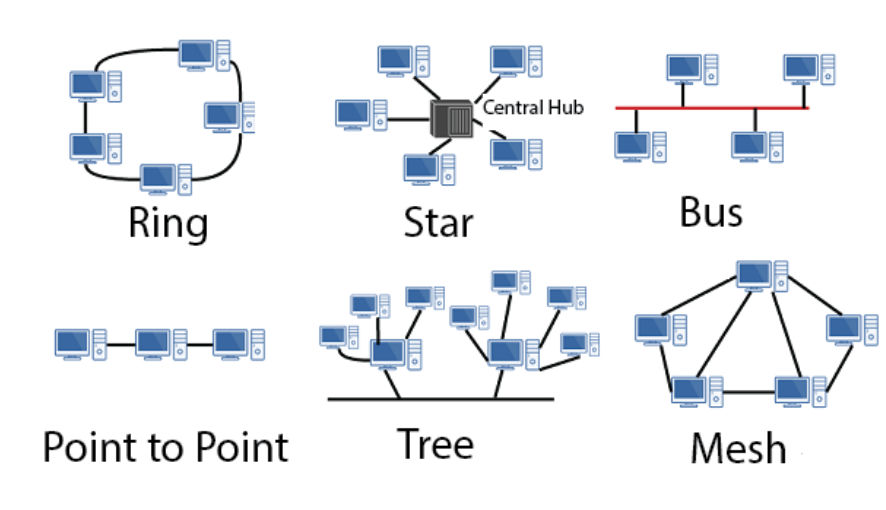

Types of Physical Topologies:

type of topology

1.Mesh Topology

In a mesh topology, every device is connected to every other device in the network. This provides multiple pathways for data to travel.

Advantages:

• High fault tolerance due to multiple connections.
• Data can be transmitted simultaneously from different devices.
• Robust and reliable network structure.

Disadvantages:

• Requires a lot of cabling and ports.
• Complex to install and configure.
• Expensive due to the amount of hardware needed.

2.Star Topology

In a star topology, all devices are connected to a central hub or switch. Data passes through the central hub before reaching its destination.

Advantages:

• Easy to install and manage.
• Failure of one node doesn't affect the rest of the network.
• Simple to add or remove devices.

Disadvantages

• The central hub represents a single point of failure.
• Requires more cable than bus topology.
• Performance depends on the capacity of the central hub.

3.Bus Topology

In a bus topology, all devices are connected to a single central cable, known as the backbone. Data transmitted by a device travels along the backbone until it reaches its destination.

Advantages:

• Easy to implement and extend.
• Requires less cabling compared to other topologies.
• Cost-effective for small networks.

Disadvantages:

• A failure in the backbone can bring down the entire network.
• Difficult to troubleshoot and isolate faults.
• Limited cable length and number of nodes.

4.Ring Topology

In a ring topology, each device is connected to two other devices, forming a circular pathway for signals. Data travels in one direction around the ring until it reaches its destination.

Advantages:

• Data packets can travel at high speeds.
• No data collisions due to unidirectional flow.
• Equal access for all devices.

Disadvantages:

• A failure in any cable or device can disrupt the entire network.
• Difficult to troubleshoot and reconfigure.
• Adding or removing devices can be disruptive.

5.Tree Topology

Tree topology combines characteristics of star and bus topologies. Groups of star-configured networks are connected to a linear bus backbone.

Advantages:

• Scalable and easy to manage.
• Isolates and prioritizes communication between different network segments.
• Fault isolation is straightforward.

Disadvantages:

• If the backbone fails, entire segments can be affected.
• More cabling is required compared to simpler topologies.
• Maintenance can be complex.

6.Hybrid Topology

A hybrid topology integrates two or more different topologies to leverage the strengths of each. For example, a combination of star and mesh topologies.

Advantages:

• Flexible and scalable.
• Customizable to meet specific network requirements.
• Enhanced fault tolerance and performance.

Disadvantages:

• Complex design and implementation.
• Higher cost due to varied infrastructure.
• Requires advanced management and maintenance.

Physical vs. Logical Topology

While physical topology refers to the actual layout of devices and cables, logical topology describes how data flows within the network, regardless of its physical design. For instance, a network might have a physical star topology but operate logically as a bus topology. Understanding both is essential for effective network design and troubleshooting.

Choosing the Right Physical Topology

Selecting an appropriate physical topology depends on various factors:

• Network Size: Larger networks may benefit from tree or hybrid topologies.
• Budget Constraints: Bus and star topologies are generally more cost-effective.
• Scalability Requirements: Mesh and hybrid topologies offer better scalability.
• Fault Tolerance Needs: Mesh topology provides high fault tolerance.
• Ease of Maintenance: Star topology is easier to manage and troubleshoot.

Conclusion:

Understanding physical topology is fundamental for designing robust and efficient computer networks. Each topology has its unique advantages and challenges, and the choice depends on specific network requirements and constraints. By carefully evaluating the needs of your network, you can select a topology that ensures optimal performance, scalability, and reliability.
